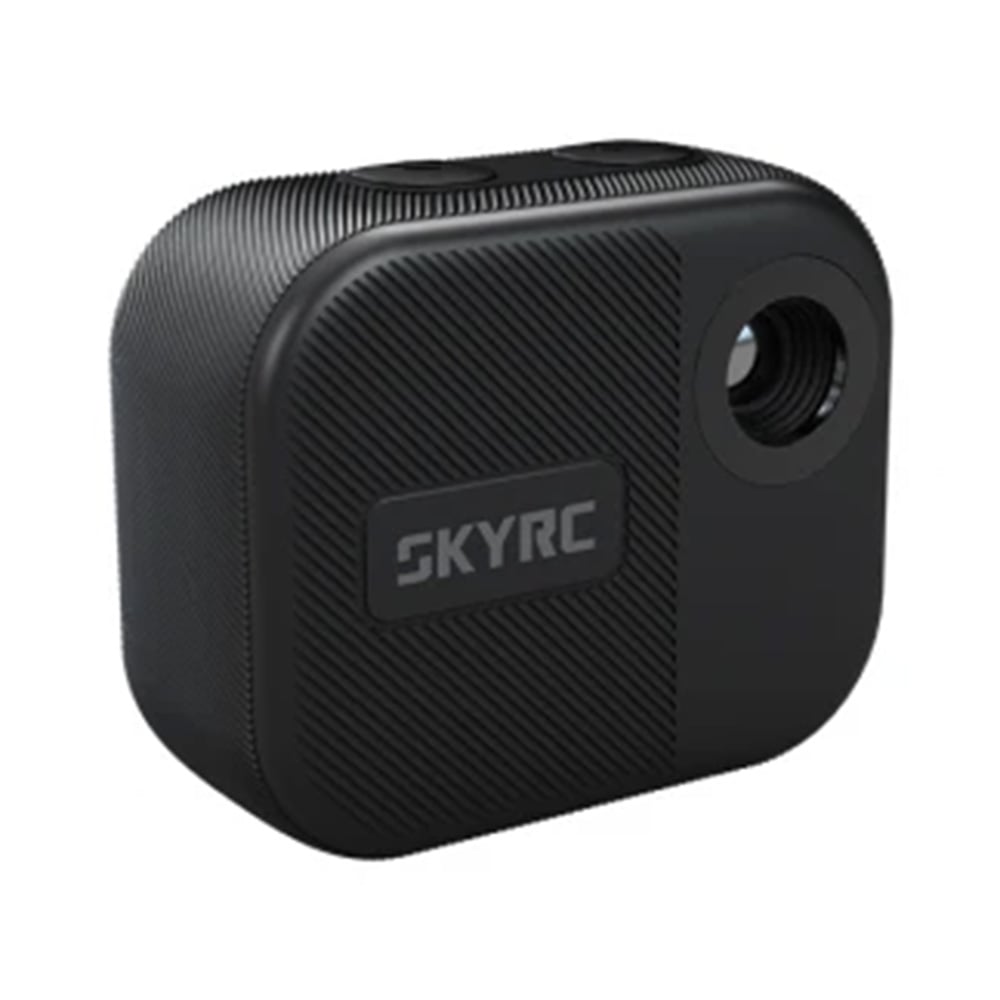

Description:
This is SkyRC ITV 500 Mini Heat Vision. The motor runs hot — permanent magnets begin to demagnetize, and output performance drops for good. The ESC is overloaded for too long — MOSFETs enter thermal runaway and eventually fail.
Battery temperature rises abnormally — aging accelerates and the risk of swelling increases dramatically. Poor connector contact — higher resistance leads to overcurrent and localized melting. Before anything breaks, it heats up. The problem is, most RC drivers have never truly seen those temperatures.
Every surface radiates invisible heat. ITV500 detects FIR(far-infrared) energy and converts it into accurate, contact-free temperature data — transforming it into a live thermal image, so you can see temperature, instantly. Every degree matters when performance is on the line. Whether you’re chasing lap consistency or fine-tuning gearing, ITV500 gives you instant thermal feedback — helping you protect your power system and extract every bit of speed. Precision up to ± 2 °C means you always know what’s running hot. From metal motors to carbon chassis, ITV500’s 0.01–1.00 adjustable emissivity 1 ensures accurate readings across every surface — capturing true temperatures without material bias.
Specification:
Size: 46 × 38 × 20.1 mm
Weight: About 38g
Display Type: 1.83" capacitive touch screen 240 × 284 pixels
IR Resolution: 32 × 24 pixels
Thermal Sensitivity: 100mK @ 1Hz
Field of View: 55° × 35°
Frame Rate: 8 FPS
LCD Display: 240 × 284 pixels
Battery: 600 mAh rechargeable lithium battery
Charging Interface: USB Type-C
Charging Input Voltage: DC 5V
Temperature Measurement Range: -20°C(-4℉) ~ 300°C(572℉)
Measurement Accuracy: ±2.0℃(3.6℉)
Measuring Distance: <5 m (for high accuracy, within <20 cm)
Operating temperature: -5℃-60℃
Working humidity: ≤85%RH, non-condensing
Storage temperature: 0°C–35°C
Storage humidity: ≤65% RH, non-condensing
